Deck-mounted traversing spooler systems for underdeck carousels — rack-and-pinion traverse, integrated guide chute, VFD electric drive synchronised with the carousel PLC.
Deck-mounted traversing spooler systems for underdeck carousels — rack-and-pinion traverse, integrated guide chute, VFD electric drive synchronised with the carousel PLC.

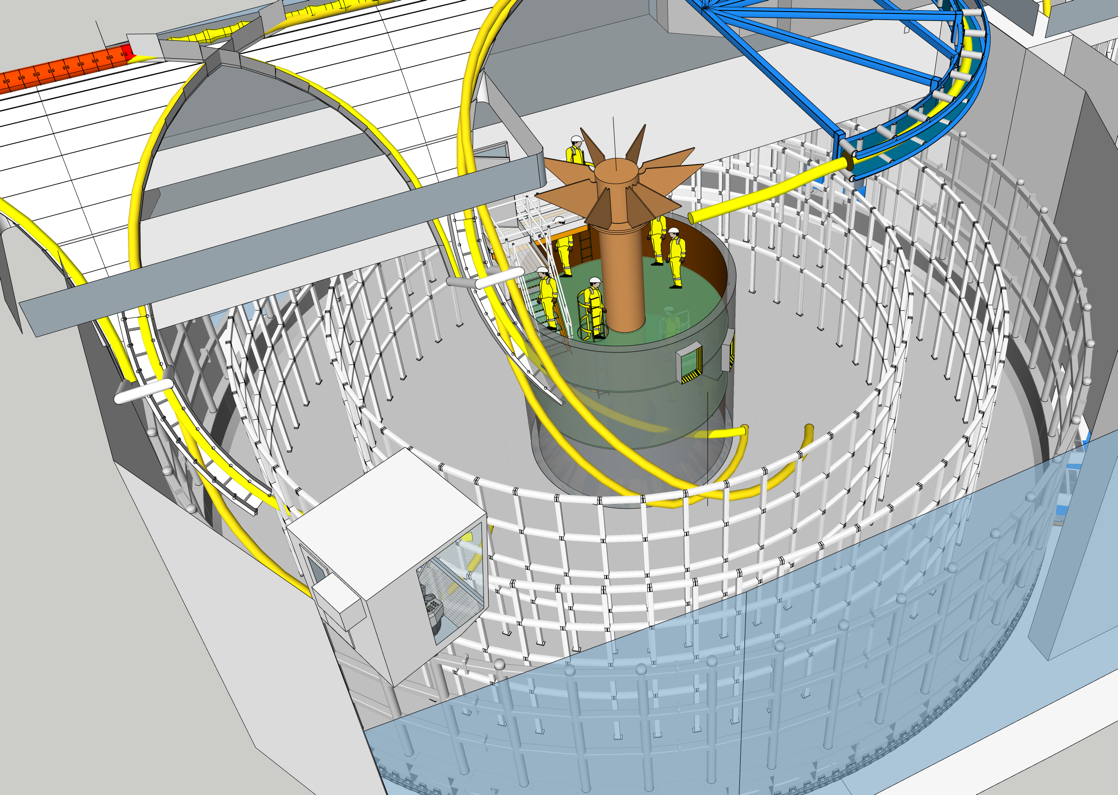

Deck-mounted traversing spooler systems engineered to feed cable into underdeck carousels — controlled, repeatable lay-pattern across the basket with full PLC integration to the carousel drive.

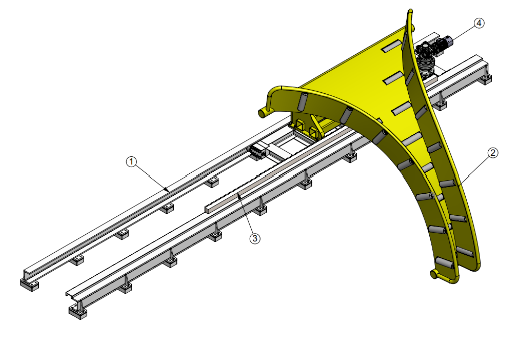

Each spooler comprises a deck foundation, a rack-and-pinion traverse carriage, and a product guide chute for controlled cable laying into the carousel basket. The spooler control is integrated with the carousel PLC so traverse position, carousel rotation and product feed remain synchronised in real time. The chute can absorb slack during emergencies or when operations stop, protecting the cable and the lay pattern.
Two traversing spoolers, one per underdeck carousel — design, supply and integration with carousel PLC
Engineering, fabrication, FAT and integration of two traversing spooler systems for an underdeck carousel package. Each spooler is mounted on a bolted-to-deck rail foundation with a rack-and-pinion carriage that traverses 5,700 mm across the hatch opening. The integrated guide chute (with LUC rollers) carries the product through the controlled bend into the carousel basket; chute geometry is sized to absorb slack during emergencies or stoppages. The traversing gearmotor is driven by a VFD electrically integrated with the carousel PLC — traverse position is commanded directly from carousel rotation, eliminating operator hand-off and ensuring a repeatable lay pattern.
Engineering, fabrication, FAT and offshore commissioning — all under one roof.

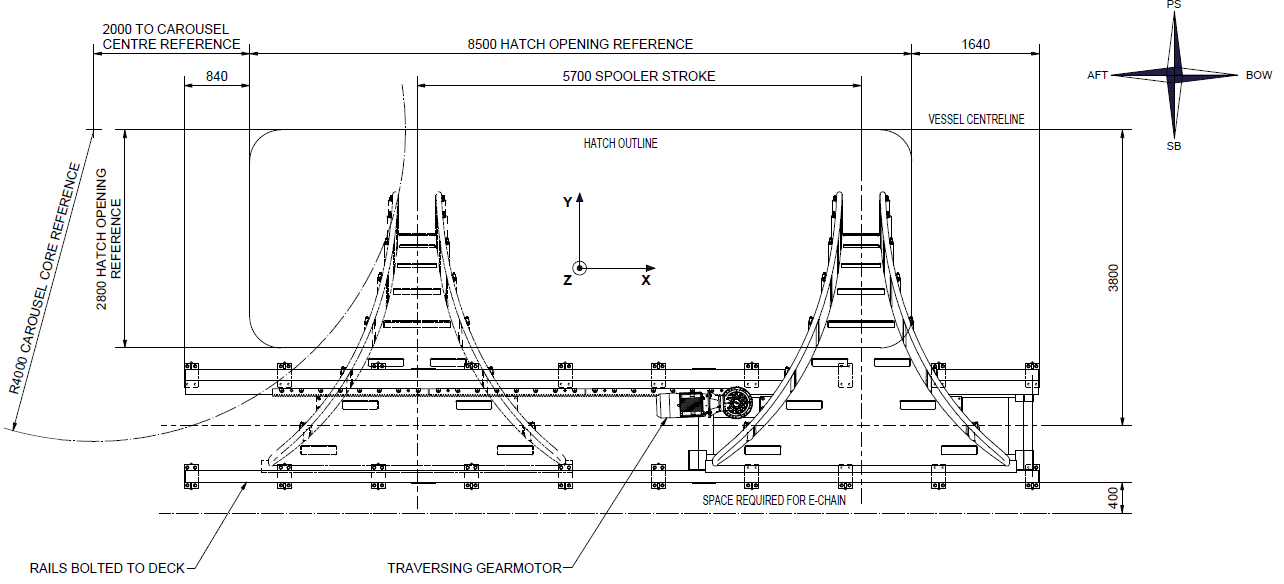

Talk to engineering →Plan reference for the traversing spooler over the carousel hatch — 8,500 mm hatch opening, 5,700 mm spooler stroke, 4,000 mm carousel core reference.
References: 8,500 mm hatch opening · 5,700 mm spooler stroke · 2,800 mm hatch opening reference · R4000 carousel core reference · 2,000 mm to carousel centre · 3,800 mm carriage envelope.
Headline parameters for the traversing spooler system. Refer to Annexure-E (E-001 through E-043) for the full technical details and compliance matrix.
| Parameter | Specification |
|---|---|
| MBR / Line Tension | 5 m / 7.5 MT |
| Traverse Mechanism | Rack & pinion over hatch opening |
| Spooler Stroke | 5,700 mm |
| Hatch Opening Reference | 8,500 mm (across) × 2,800 mm |
| Carousel Core Reference | R4,000 mm |
| Distance to Carousel Centre | 2,000 mm (from spooler centreline) |
| Chute | Guide chute with product rollers (LUC) |
| Drive System | Electric via VFD (integrated with carousel PLC) |
| Traversing Gearmotor | Pinion-driven, deck-mounted, with E-chain energy management |
| Foundation | Rails bolted to deck — modular, demountable carriage |
| Slack Absorption | Chute geometry absorbs slack during emergencies / stoppages |
| User Interface | Local diagnostic + remote operation from cable-lay control room |
| Finish — Foundation | RAL 6005 Moss Green |
| Finish — Carriage | RAL 5017 Blue / RAL 3020 Red |
| Reference | Annexure-E, E-001 through E-043 |
Six integration gates from layout planning through class approval — the standard workflow applied to every cable handling package Dimension delivers.
Spooler footprint, traverse stroke and chute envelope set against the vessel hatch and carousel basket geometry.
Cable-path analysis across the chute, traverse and carousel — MBR, tension and slack-absorption envelope verified.
Spooler VFD drive and traverse position synchronised with carousel rotation through the shared PLC.
Factory Acceptance Testing — traverse function, chute alignment and emergency-stop slack absorption.
Spooler installed over hatch, foundation rails bolted to deck, integrated FAT with the carousel package.
Foundation and structure approval; integrated cable-handling certification with the carousel package.
Top-loading product feed into underdeck cable carousels on hybrid CLVs and newbuild lay vessels
HV submarine cable and umbilical transpooling — controlled lay pattern across the basket
Shoreside factory-acceptance and re-spooling operations
Emergency-stop slack absorption — protecting product during stoppages or carousel halts
Get a tailored datasheet, 3D model and budgetary quotation for your specific project.
From feasibility through commissioning — Dimension delivers in-house engineered marine equipment, backed by 14+ years of offshore operations.
