The complete power and control chain behind every Dimension equipment package: hydraulic power units, VFD drive panels and integrated PLC / HMI control rooms. Built to exceed class and load tested at FAT against the equipment they drive.
Hydraulic power, electric drives and the control room that ties them together, engineered and built in-house. Supplied individually or as a single integrated package for tensioners, carousels, winches and cranes.
Bespoke skid-mounted HPUs with redundant pumps and dedicated cooling.
Motor-drive packages with regenerative braking and class-compliant harmonics.
Integrated control rooms with networked operator stations and alarm logging.
Bespoke skid-mounted HPUs sized to the crane, winch or compensator they serve. Redundant pumps and triple-stage filtration keep the hydraulic circuit clean and available, with air or titanium-plate seawater cooling to suit the vessel.
| Hydraulic power (HPU) | 75 kW – 1,500 kW per skid |
|---|---|
| Working pressure | Up to 350 bar |
| Flow | Up to 1,800 l/min |
| Reservoir | 1,500 – 8,000 l |
| Cooling | Air or seawater (titanium plate) |
| Filtration | Triple-redundant, ISO 4406 18/16/13 or better |

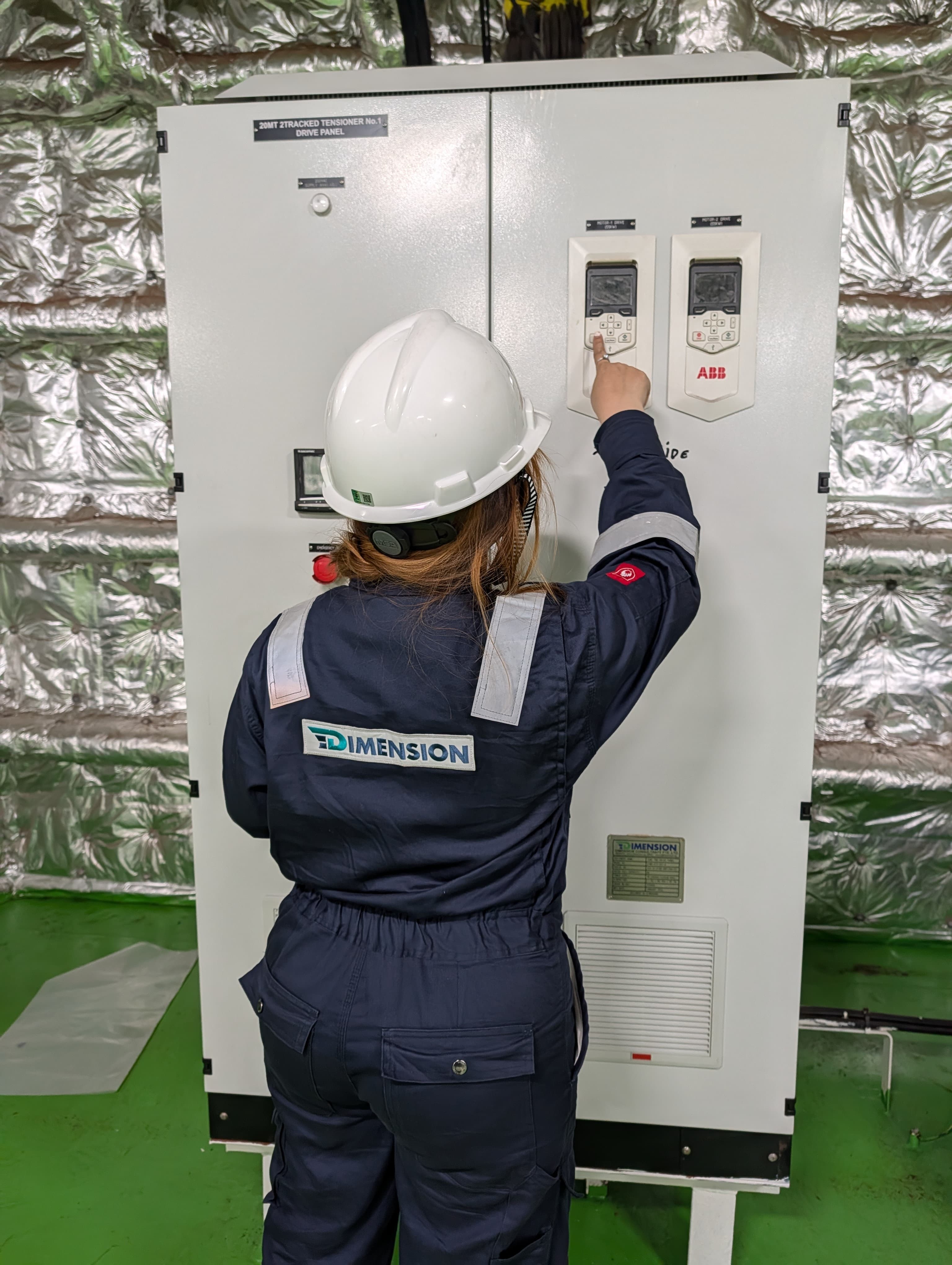

Full motor-drive packages for tensioners, carousels, winches and cranes, built into Dimension-fabricated cabinets. On the GL 2030, ABB ACS880 drives power the 2 500 MT carousel, 20 MT tracked tensioner and 2 MT LCE.
| Electric drive (EPU) | 400 / 690 V · 50/60 Hz · 3-phase |
|---|---|
| VFD drives | Siemens SINAMICS S120 / ABB ACS880 / Rockwell PowerFlex 755 — with regenerative front-end option |
| Motor range | 5.5 kW – 800 kW per drive, IE3 / IE4 marine-duty |
| Harmonics | Active front-end / line filters — class-compliant THD |

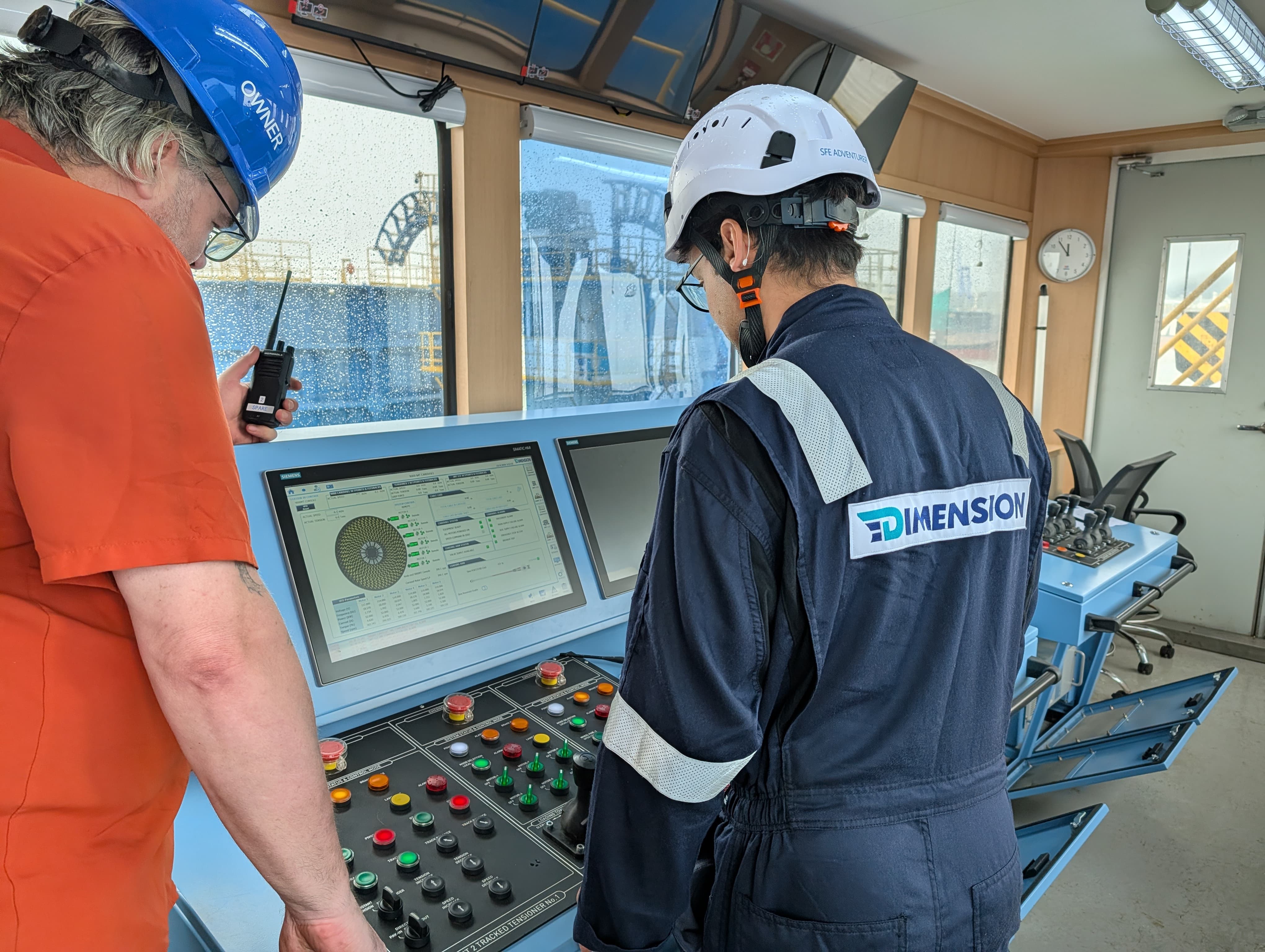

PLC, HMI and integrated control rooms that bring every drive and hydraulic line under one operator view. The GL 2030 control room has three operator consoles with Siemens HMI panels and a unified alarm and load-monitoring system.
| PLC | Siemens S7-1500 (TIA Portal) · Rockwell ControlLogix · redundant CPU option |
|---|---|
| HMI | 15"–24" multi-touch industrial panels — Siemens Comfort / Rockwell PanelView |
| Operator stations | Local console, joystick, hand-pendant & remote — networked |
| Comms | Profinet · Modbus TCP · Ethernet/IP · CAN |
Every skid and panel is engineered, fabricated and FAT-tested in-house, then commissioned offshore, backed by a 14+ year operations track record on Dimension-built marine equipment.
Built to exceed MODU, SOLAS, IEC 60092, with class on project basis (BV · ABS · DNV · LR).
Full-load FAT against parent equipment, witnessed by class on project basis. Every drive, every line, every console.
ATEX / IECEx Zone 1 & 2 variants on request.
IP56 weather-resistant container, IP54 panels and stainless gland plates.
Redundant pumps, filtration, operator consoles and optional redundant PLC CPUs.
HPU, drives and control engineered as a single chain, so one team owns performance from power to operator.

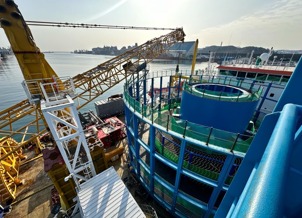

Dimension delivered the complete electrical and control package for the GL 2030 cable-lay spread: VFD drives and motor control for the carousel, tensioner and LCE, and the integrated control room. All panels and HPU skids were FAT-tested with the parent equipment under full load before vessel integration.
From feasibility through commissioning — Dimension delivers in-house engineered marine equipment, built to exceed class requirements and load tested before sailaway, backed by 14+ years of offshore operations.
